ACS2 Seat for Old Town and Necky Kayaks, Wide mounting width

This is one of 3 versions of the ACS2 seat kits that we have in stock for Old Town or Necky kayaks.  This one has a WIDE mounting bolt width, and fits kayaks with a Wider cockpit and deeper cockpit.
This ACS2 seat is adjustable, so it fits Large or Small paddlers Great.

Finally, after many requests and a great deal of begging... The factory has agreed to offer the next level of comfort in a kit form... Active Comfort System 2 (or ACS2.)
ACS2 is clearly better than the older ACS seats in many ways. This is the current and best type of seat used in the best Old Town or Necky models that have wider cockpits.
Designed for all day comfort the ACS2 seat features a visible, intuitive adjustment system, multi-laminate construction for optimal support and softness. Enhanced seating surface gives superior air-flow and drainage. This sturdy new seat provides that "one with the boat" feeling along with tremendous comfort.
This four-way adjustable seat tailors individual backrest height, thigh support, lumbar support and backrest angle to provide a truly customized ride.
ACS2 seat kit will replace your old time seat. Also replaces the grey Extrasport Xtra Comfort seats in Old Town or Necky kayaks that have Wider cockpits.
If you have an older Dirigo kayak with Extrasport Xtra Comfort seats AND ratchet control knobs (these knobs are in the way and need to be removed). Note: we have also used the Medium ACS2 seat is some Dirigo kayaks. (measure your kayak carefully for depth below screw holes and distance across cockpit screw to screw.)
The mounting brackets that hold the seat are bolted into the kayak vertically through the kayak deck, next to the cockpit combing (two holes per side; @ 3" on center, front to rear).
Each mounting bracket is about 4.75" above the seat pan, OR 9" above a flat floor but they can be adjusted 1/2" higher OR 1" higher to accommodate different kayak depths. We sell Optional extra mounting brackets for this seat that are one inch shorter, and still adjustable like the standard bracket.
NOTE; the standard mounting brackets for this seat need to be mounted about 21.5" to 24" apart
(For this measure from a seat mounting screw on one side, across your kayak's cockpit, to a seat mounting screw on the other side).
This seat's mounting brackets have inner mounting holes designed for self tapping screws at 21.5" apart AND outer mounting holes designed for nut/bolts up to 24" apart. You may choose to use either the screw hole OR bolt hole, as you see best for your kayak. Mounting screws are included.
This ACS2 Seat Pan is about 17" Long and 20.5" wide.
Overall seat length is 20" and overall seat width is 23". Foam pads on the bottom of this seat may be shaved down, OR added to, in order to fit hull shape.
The backrest is 11" tall by 15" wide, contoured for lumbar support, adjusts up/down, adjusts for lean.

If you have questions on how this seat may work in your kayak you may email or call our customer service with questions ph: (585)682-4849.

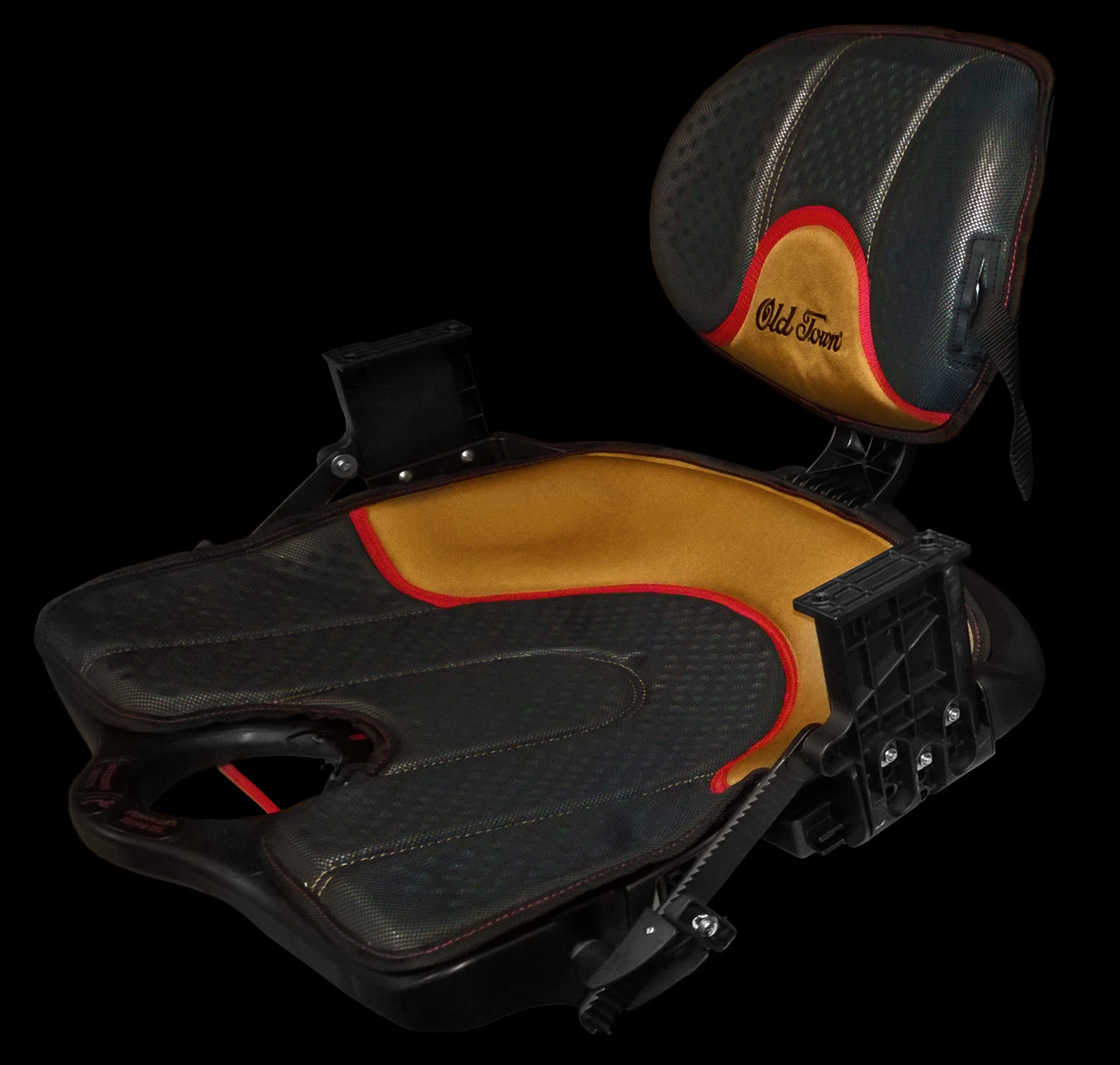

The ACS2 pictured at left is in an Old Town Vapor. We have used this seat in the Old Town's Heron and the new Loon 106, 120, 126 and the NECKY Rip 10 and 12.

Kayaks vary from year to year of a given model; this seat does not fit in every kayak.  It may be too wide or deep for some models, but we do offer 2 smaller versions (lower on this page) for less wide or less deep kayak models.
We recommend that You measure YOUR particular kayak to see if this seat's 21.5" to 24" seat bracket mounting -bolt to bolt width will fit.

We sell 3 types of ACS2 seats, this Wide style (requires wider mounting bolt to bolt width) and comes with Taller adjustable mounting brackets (requires more kayak depth.)

We included these items with this ACS2 Wide seat kit...

• Wide Adjustable Seat Mounting brackets which you can adjust higher or lower for kayak depth.
• Multiple Shims to cushion under the seat, or raise it up off the floor as needed.
• We also sell Medium or Narrow adjustable mounting brackets, as an alternative to the ones that we include with this ACS2 wide seat kit.

Our database can help you determine the best fit. Please email us if you have questions.
