ACS2 Seat for Old Town and Necky Kayaks, Medium mounting width

This is one of 3 versions of the ACS2 seat kits that we have in stock for Old Town or Necky kayaks.  This one has a MEDIUM mounting bolt width, and fits kayaks with a less wide, OR less deep cockpit.
This ACS2 seat is adjustable, so it fits Large or Small paddlers Great.

ACS2 is clearly better than the older ACS seats in many ways. This is the current and best type of seat used in the top-of-the-line Old Town and Necky models that have a less wide cockpit and medium depth.
Designed for all day comfort the ACS2 seat features a visible, intuitive adjustment system, multi-laminate construction for optimal support and softness. Enhanced seating surface gives superior air-flow and drainage. This sturdy new seat provides that "one with the boat" feeling along with tremendous comfort.
This four-way adjustable seat tailors individual backrest height, thigh support, lumbar support and backrest angle to provide a truly customized ride.
ACS2 seat kit will replace your old time seat. Also replaces the grey foam-like Extrasport Xtra Comfort seats that were in some of the Necky or Old Town touring kayaks.

If you have an older Dirigo kayak with Extrasport Xtra Comfort seats AND ratchet control knobs (these knobs are in the way and need to be removed, we generally just put a bolt in the hole where the knob was.)

The brackets on each side that hold this seat in place are bolted into the kayak vertically through the kayak deck, next to the cockpit combing (two holes per side; @ 3" on center, front to rear.)

When this seat is on a flat floor, the top of the seat bracket (in the higher setting) is 9.25" above the floor (or 8" in the lowest setting.) This includes a 3/4" foam pad underneath the center of the seat (this foam can be shaved thinner, or you can add more pads) to best fit the bottom shape of your kayak. Each bracket is about 4.5" tall (from the seat pan) but they can be adjusted about 1/2" higher OR 1/2" lower to accommodate different kayak depths. The total bracket height is 6 1/8".

NOTE; the mounting brackets for this seat need to be mounted about 18.75" to 21.5" apart. (For this measure from a seat mounting screw on one side, across your kayak's cockpit, to a seat mounting screw on the other side).
This seat's mounting brackets have inner mounting holes designed for self tapping screws at 18.75" apart AND outer mounting holes designed for nut/bolts up to 21.5" apart. You may choose to use either the screw hole OR bolt hole, as you see best for your kayak.
This medium ACS2 Seat Pan is about 18" Long and 18" wide.
Overall seat length is 19.25" and overall seat width is 19.75".
Foam pads on the bottom of this seat may be shaved down OR added to, in order to fit hull shape.
The backrest is 9" tall by 14.5" wide, contoured for lumbar support, adjusts up/down, adjusts for lean.  Backrest adjusts from 13.5" up to 15" from the floor.

If you have questions on how this seat may work in your kayak you may email or call our customer service with questions, ph: (585)682-4849.

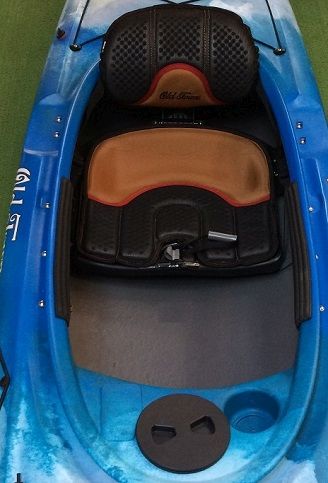

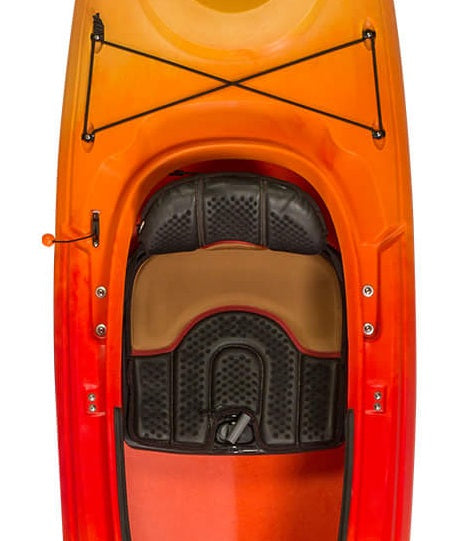

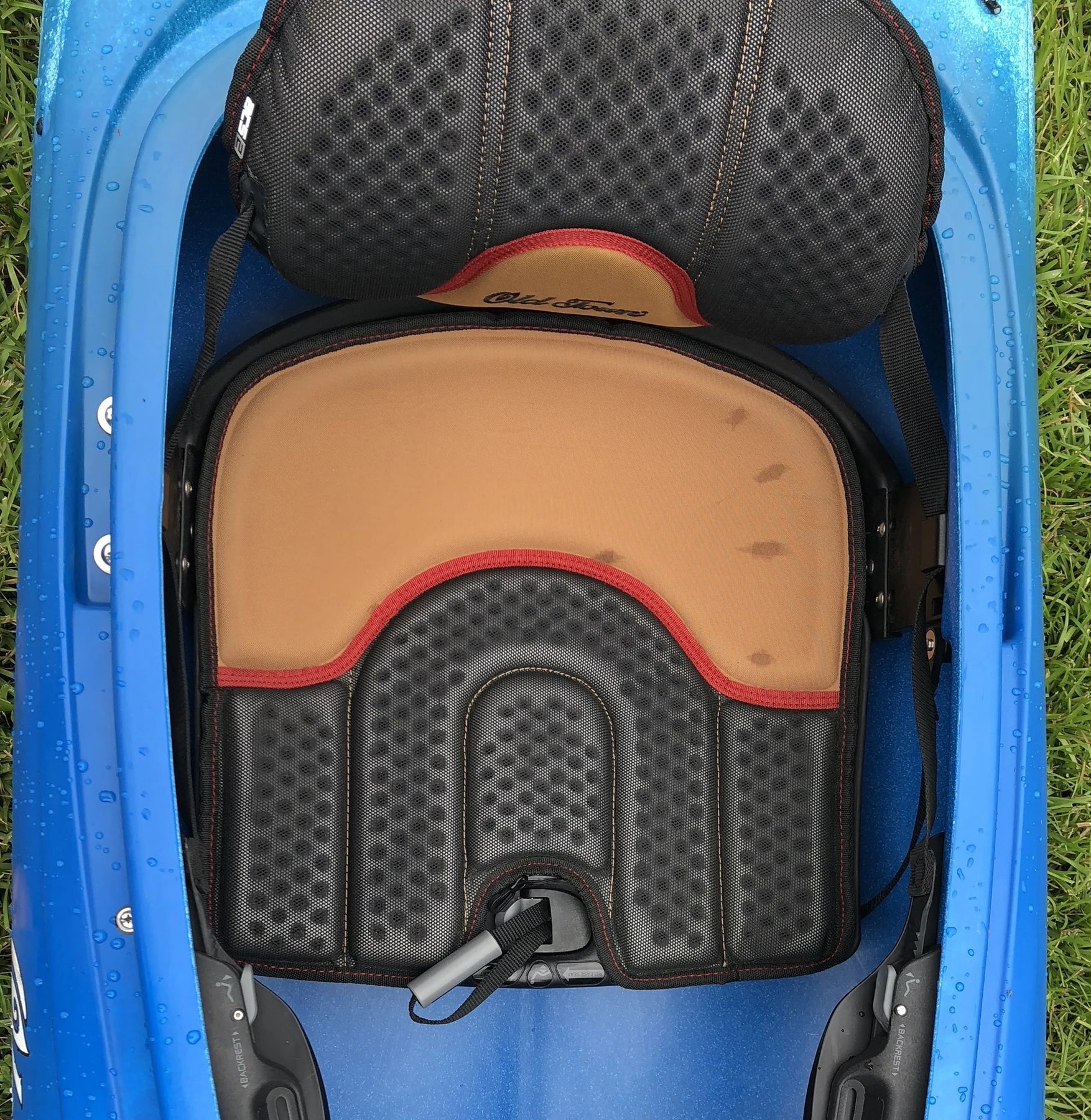

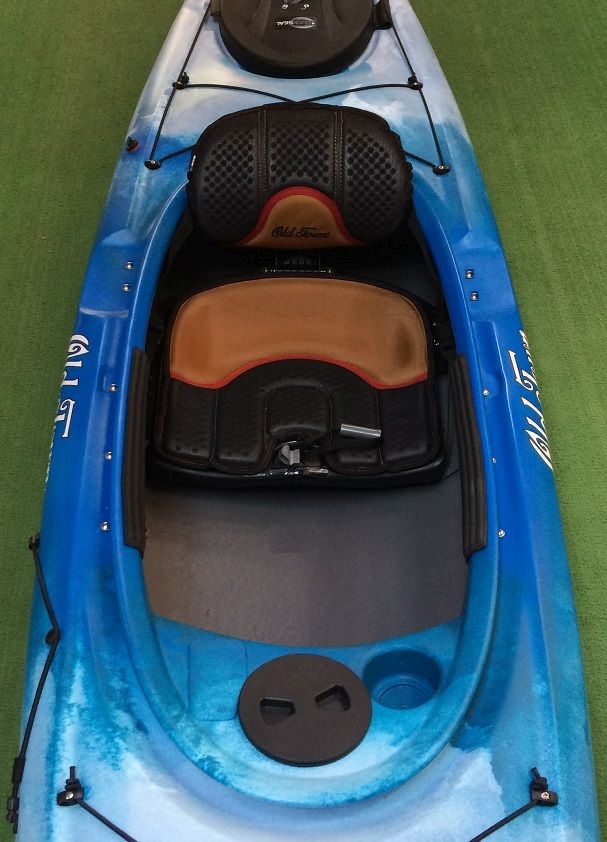

The ACS2-medium seat pictured at left is in an Old Town Sorrento. Another pic shows the ACS2-medium seat in the Old Town Dirigo. We have also used this seat in the Necky Manitou Sport.

Kayaks vary from year to year of a given model; this seat does not fit in every kayak.
We recommend that You measure YOUR particular kayak to see if this seat's 18.75" to 21.5" seat bracket mounting -bolt to bolt width will fit.

We sell 3 types of ACS2 seats, this one is Medium (requires the medium mounting bolt to bolt width) and comes with medium height adjustable mounting brackets for medium kayak depth.

We include hardware and these items with this ACS2 Medium seat kit...

•  Medium Adjustable Seat Mounting brackets which you can adjust higher or lower for kayak depth.
• Multiple Shims to cushion under the seat, or raise it up off the floor as needed.
• We also sell the Narrow adjustable mounting brackets, as an alternative to the ones that we include with this ACS2 medium seat kit.

Our database can help you determine the best fit. Please email us if you have questions.
