Morningstar
The
MorningStar is
at home on all types of water. It maneuvers nimbly due to its shorter length,
but will hold plenty of gear for a long weekend trip. Crossover tandem and
solo
capability make this the perfect cabin canoe and pocket tripper. Available
options: center seat. |
WEIGHTS BY LAYUP
BlackGold - 41 lbs.
KevLight - 36 lbs.
Royalex - 55 lbs.
Length: 15'-6"
Length/width
ratio: 5.8
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 21"
Mid: 14"
Stern: 19"
Width:
Gunwale width - 32"
Max width - 36"
4" WL width - 32"
Displacement:
2" WL - 170 lbs.
3" WL - 310 lbs.
4" WL - 420 lbs.
5" WL - 580 lbs.
Capacity:
6" Freeboard: 950 lbs.
Optimum Load: 250-550 lbs. |
|
|
|

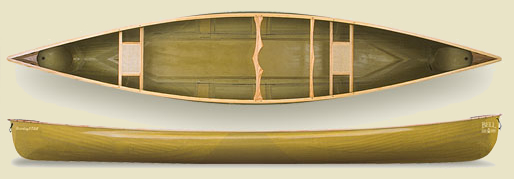

Eveningstar
Everywhere you look: Dutch ovens. Dutch oven cook books. Dutch oven cooking shows.
Dutch oven support groups. So when a new canoe comes along that paddles just as easily
as the popular Morningstar but is just a little longer and a little wider, you say,
"What should I do with the extra room?" That's for you to decide. But let's just say
maybe there should be biscuits on the menu next trip?
|
WEIGHTS BY LAYUP
BlackGold - 50 lbs.
KevLight - 46 lbs.
Royalex - 68 lbs.
Length: 16'-6"
Length/width
ratio: 5.8
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 21.5"
Mid: 14"
Stern: 19"
Width:
Gunwale width - 34"
Max width - 38"
4" WL width - 34.5"
Displacement:
2" WL - 240 lbs.
3" WL - 395 lbs.
4" WL - 550 lbs.
5" WL - 725 lbs.
Capacity:
6" Freeboard: 1250 lbs.
Optimum Load: 375-800 lbs. |
|
|
|

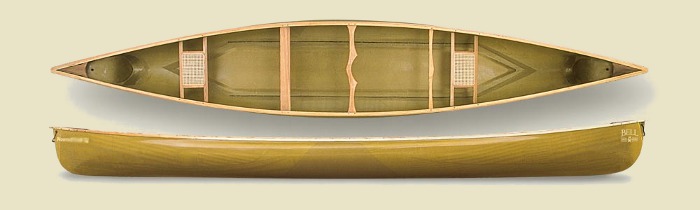

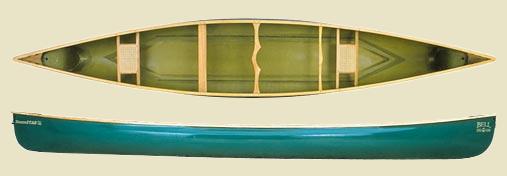

Northstar
Ever
searched for the perfect tandem canoe? The NorthStar just might be it.
We’ve trimmed the beam to provide the hull speed of boats a foot longer.
It easily fits full-size packs and gear for multi-day trips. It tracks, it
glides, it turns on a dime. Available options: center seat; kneeling thwart.*
*Shown with optional kneeling thwart. |
WEIGHTS BY LAYUP
BlackGold - 44 lbs.
KevLight - 39 lbs.
Length: 16'-6"
Length/width ratio: 6.4
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 20.5"
Mid: 13.5"
Stern: 17.5"
Width:
Gunwale width - 31"
Max width - 34.5"
4"
WL width - 31"
Displacement:
2" WL - 160 lbs.
3" WL - 300 lbs.
4" WL - 410 lbs.
5" WL - 570 lbs.
Capacity:
6" Freeboard: 950 lbs.
Optimum Load: 250-550 lbs. |
|
|
|

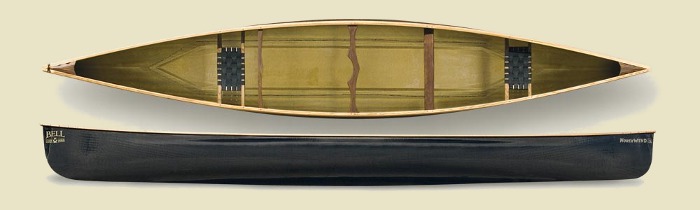

Northwind
The
NorthWind is our most popular tandem for flatwater tripping. It offers proven
performance and reassuring stability for all kinds of applications.
Remarkably
maneuverable for its size, the NorthWind will also surprise with its speed.
It is a joy in currents and choppy conditions. Available options: center seat;
bow slider; kneeling thwart. |
WEIGHTS BY LAYUP
Blackgold - 47 lbs.
KevLight - 42 lbs.
Royalex - 60 lbs.
Composite:
Length: 17'-6"
Length/width ratio: 6.6
Royalex:
Length: 16’ - 6"
Length/width ratio: 6.2
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 21"
Mid: 14"
Stern: 19"
Width:
Gunwale width - 32"
Max width - 36"
4" WL width - 32"
Displacement:
2" WL - 200 lbs.
3" WL - 350 lbs.
4" WL - 480 lbs.
5" WL - 640 lbs.
Capacity:
6" Freeboard: 1100 lbs.
Optimum Load: 350-650 lbs.
|
|
|
|

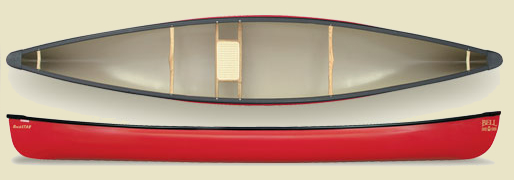

Rockstar
So what happens when you take a Jack-of-all-trades and make him bigger?
Bigger-Jack-of-all-trades? Master of the universe? Perhaps. But maybe
you just call him Rockstar. Sounds appropriate for a touring canoe that
can get a fella through mild whitewater here and there.
|
WEIGHTS BY LAYUP
BlackGold - 35 lbs.
KevLight - 32 lbs.
Royalex - 49 lbs.
Length: 15' 6"
Length/Width Ratio: 6.2
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 19"
Mid: 13.5"
Stern: 16.5"
Width:
Gunwale width - 27"
Max width - 31"
3" WL width - 28"
Displacement:
2" WL - 170 lbs.
3" WL - 250 lbs.
4" WL - 340 lbs.
Capacity:
6" Freeboard: 720 lbs.
Optimum Load: 160-320 lbs.
|
|
|
|

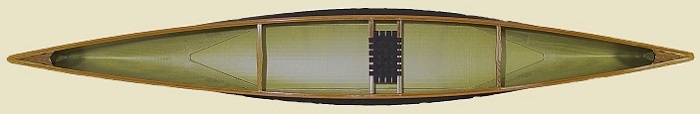

Magic
A quiet, fast,
and seaworthy hull are three features solo paddlers love about the Magic. It
covers distances effortlessly. In wind and waves the Magic exhibits the
control
and maneuverability of a much shorter craft, yet holds a line without
wandering. Available options: footbraces. |
WEIGHTS BY LAYUP
BlackGold - 34 lbs.
KevLight - 32 lbs
Length: 16'
Length/Width Ratio: 7.2
Rocker:
Bow 1.5"
Stern .75"
Shear:
Bow: 17.5"
Mid: 12.5"
Stern: 15"
Width:
Gunwale width - 23"
Max width - 29"
3" WL width - 25.5"
Displacement:
2" WL - 150 lbs.
3" WL - 240 lbs.
4" WL - 340 lbs.
Capacity:
6" Freeboard: 650 lbs.
Optimum Load: 160-280 lbs.
|
|
|
|

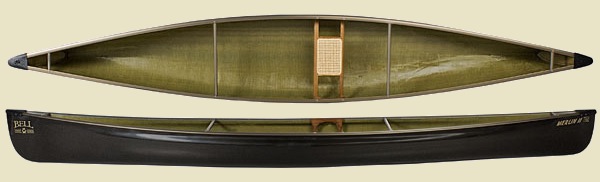

Merlin II
We offer the
Merlin II for the paddler who desires the feel of a composite solo cruiser
but
doesn't want to sacrifice all-around performance. It swiftly slices through
mile after mile of flatwater. Differential rocker provides crisp turning and
efficient corrections in wind and waves. Available options: foot braces.
|
WEIGHTS BY LAYUP
BlackGold - 33 lbs.
KevLight - 31 lbs.
Length: 15'
Length/Width Ratio: 6.9
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 17"
Mid: 12"
Stern: 15"
Width:
Gunwale width - 27"
Max width - 29"
4" WL width - 25.5"
Displacement:
2" WL - 150 lbs.
3" WL - 240 lbs.
4 " WL - 340 lbs.
Capacity:
6" Freeboard: 650 lbs.
Optimum Load: 160-280 lbs. |
|
|
|

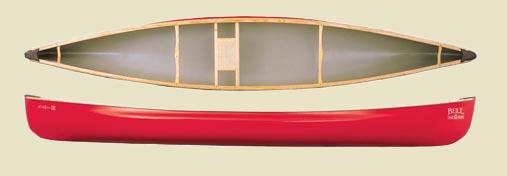

Yellowstone Solo
The
Yellowstone Solo is one of our most versatile solo canoes. It is at home on
rivers and streams, and handles mild whitewater in stride. Its dry, full
design
tracks well, maneuvers effortlessly, and provides ample speed for cruising in
the calm stretches. The Yellowstone Solo is the perfect solo utility canoe.
It
is designed and built to handle all kinds of water. (Shown with optional wood
trim.) |
WEIGHTS BY LAYUP
BlackGold - 44 lbs.
KevLight - 44 lbs.
Royalex - 44 lbs.
Length: 14'
Length/Width Ratio: 6
Rocker:
Bow 2.5"
Stern 1.5"
Shear:
Bow: 18.5"
Mid: 12.5"
Stern: 16.5"
Width:
Gunwale width - 27"
Max width - 30"
4" WL width - 26.5"
Displacement:
2" WL - 150 lbs.
3" WL - 240 lbs.
4 " WL - 340 lbs.
Capacity:
6" Freeboard: 650 lbs.
Optimum Load: 160-280 lbs.
|
|
|
|
Yellowstone
Not everyone
has room in the garage or the budget for multiple canoes. We designed the
Yellowstone to do it all with one boat. Its perfect blend of performance
features, like speed and stability, make river paddling a breeze. Yet, the
Yellowstone still skates across flatwater quietly and efficiently while
holding
enough gear for a long weekend trip. Available option: center seat. (Shown
with
optional web seats.) |
WEIGHTS BY LAYUP
Royalex - 59 lbs.
Length: 15' 6"
Length/Width Ratio: 5.5
Rocker:
Bow 3"
Stern 2"
Shear:
Bow: 21"
Mid: 14"
Stern: 19"
Width:
Gunwale width - 32.5"
Max width - 34"
4" WL width - 32"
Displacement:
2" WL - 170 lbs.
3" WL - 310 lbs.
4" WL - 420 lbs.
5" WL - 580 lbs.
Capacity:
6" Freeboard: 950 lbs.
Optimum Load: 250 - 550 lbs. |
|
|
|
Alaskan
A design
inspired by Bell fan and wilderness guru Cliff Jacobson, the Alaskan’s
river tripping features also make it a phenomenal family canoe. The Alaskan
has
plenty of room to squeeze in the kids, cooler, and the family pet. Of course,
if you do just happen to be headed to the Yukon and need a solidly-built,
responsive ride with room for the kitchen sink – the Alaskan has it.
Available options: wood trim, sliding bow seat.
|
WEIGHTS BY LAYUP
Royalex - 72 lbs.
Length: 17'
Length/Width Ratio: 5.5
Rocker:
Bow 3"
Stern 2"
Shear:
Bow: 22"
Mid: 14"
Stern: 20"
Width:
Gunwale width - 36"
Max width - 37"
4" WL width - 32.5"
Displacement:
2" WL - 210 lbs.
3" WL - 365 lbs.
4" WL - 500 lbs.
5" WL - 670 lbs.
Capacity:
6" Freeboard: 1155 lbs.
Optimum Load: 365 - 700 lbs.
|
|
|
|
Angler
The Angler is
built for all-day comfort. Options like the supportive Swivel Seat and the
new
Workstation create a custom-tailored canoe that is tough and stable. The
Angler
is incredibly maneuverable and surprisingly fast as well. Available options:
Swivel Seats, Back Water Workstation, Fishing Package. Available only in
vinyl
trim. (Shown with optional Fishing Package including Swivel Seats and
BackWater
Workstation.) |
WEIGHTS BY LAYUP
Royalex - 58 lbs.
Length: 14'-6"
Length/width ratio: 4.7
Rocker:
Bow 2"
Stern 1"
Shear:
Bow: 18.5"
Mid: 13"
Stern: 17"
Width:
Gunwale width - 35.5"
Max width - 37"
4" WL width - 35.5"
Displacement:
2" WL - 170 lbs.
3" WL - 310 lbs.
4" WL - 420 lbs.
5" WL - 580 lbs.
Capacity:
6" Freeboard: 950 lbs.
Optimum Load: 250-550 lbs. |
|
|
|
Rob Roy 15
We label the
Rob Roy a "canoe" even though most paddlers propel it with a double-bladed
paddle. In fact, the Rob Roy has a cult following of paddlers who enjoy its
common sense approach to traveling across the water. Floor level seating and
a
padded backband provide exceptional stability and comfort. Yet, the wide open
cockpit provides all the convenient entry, exit, and loading features of a
canoe. Available with wood trim only. |
WEIGHTS BY LAYUP
BlackGold - 35 lbs.
KevLight - 31 lbs.
Length: 15'
Length/width ratio: 7.1
Rocker:
Bow 1.5"
Stern .75"
Shear:
Bow: 13"
Mid: 12"
Stern: 11"
Width:
Gunwale width - 20.5"
Max width - 28.5"
3" WL width - 25.5"
Displacement:
2" WL - 150 lbs.
3" WL - 240 lbs.
4" WL - 340 lbs.
Capacity:
6" Freeboard: 550 lbs.
Optimum Load: 160-280 lbs. |
|
|
|

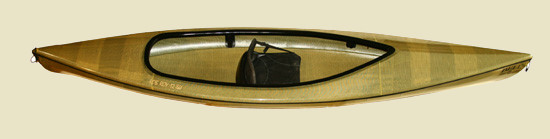

Rob Roy 12
Whether you call it a kayak or a decked canoe the Rob Roy 12, like its bigger sibling
the Rob Roy 15, is all about versatility and ease of paddling. This boat will go
anywhere. And with its ultra lightweight construction you can transport and carry it
almost anywhere. A comfortable padded seat with high backrest helps keep you on the
water without aches and pains, while the oversized cockpit provides easy entry and exit.
The Rob Roy 12 also has the ability to swallow packs and large loads thanks to a
generous amount of space behind the seat. Rob Roys are the perfect canoes for quiet,
efficient movement across the water.
|
WEIGHTS BY LAYUP
WhiteGold - 38 lbs
KevLight - 26 lbs.
Black Gold - 31 lbs.
Length: 12'
Length/width ratio: 5.1
Rocker:
Bow 1.5"
Stern .75"
Shear:
Bow: 14"
Mid: 14"
Stern: 12"
Width:
Gunwale width - 20.5"
Max width - 28.5"
3" WL width - 25.5"
Displacement:
2" WL - 125 lbs.
3" WL - 200 lbs.
4" WL - 280 lbs.
Capacity:
6" Freeboard: 450 lbs.
Optimum Load: 130-230 lbs. |
|
|
|

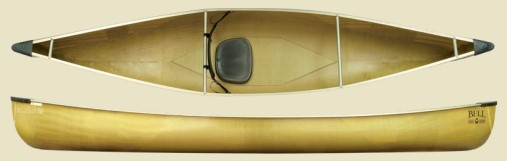

Bucktail
Ever find yourself at the mouth of a mysterious cove or trout-holding stream only to be
thwarted by the girth of your canoe? Fear not, the Adirondack-styled Bucktail solo is
made precisely for these opportunities. On the open water, the bucktail keeps you dry,
upright and no worse for wear thanks to a padded seat with a lazyboy-esque backrest.
|
WEIGHTS BY LAYUP
KevLight - 21 lbs.
Black Gold - 24 lbs.
Length: 12'
Length/width ratio: 5.6
Rocker:
Bow 1.5"
Stern .75"
Shear:
Bow: 15"
Mid: 11.5"
Stern: 15"
Width:
Gunwale width - 29"
Max width - 29"
WL width - 24"
Displacement:
2" WL - 90 lbs.
3" WL - 180 lbs.
4" WL - 240 lbs.
Capacity:
6" Freeboard: 400 lbs.
Optimum Load: 100-250 lbs. |
|
|
|
|
|
